TESTING THE COMPUTER

HELLO!!!

Today we are so happy, because before than disassemble the computer and later assemble again, we turn on the computer and it was working better than the first time.

DISASSEMBLING THE COMPUTER

 Hello!

 Today we disassembled all parts of the computer and we find the information of eatch one. Here you have the link to eatch information page. Enjoy it!

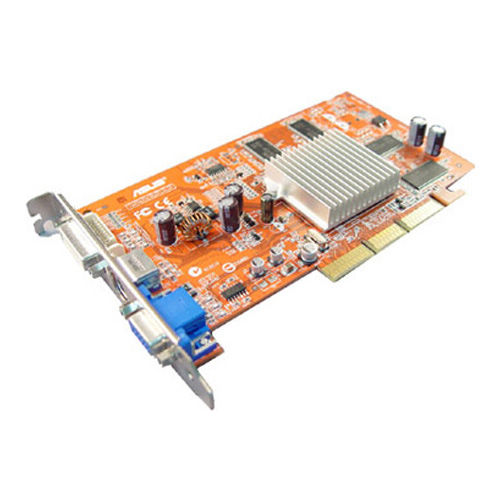

Video card: ASUS A9250GE/TD/   256M  https://www.asus.com/Graphics-Cards/A9250GETD128M/

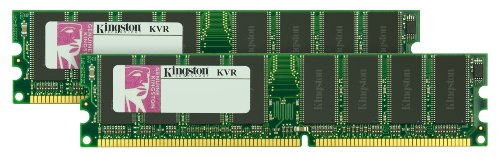

RAM memory: 2x kingston kvr 99u5193 512mb

http://www.ec.kingston.com/ecom/configurator_new/PartsInfo_disc.asp?root=anz&LinkBack=&ktcpartno=KVR400X64C25/512

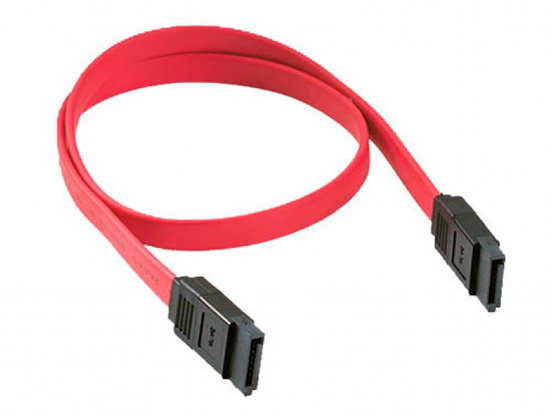

Data storage conexion: Serial ATA 2Paris/AWG26

Hard disk 1:SAMSUNG SP0812C

http://www.hdsentinel.com/storageinfo_details.php?lang=en&model=SAMSUNG%20SP0812C

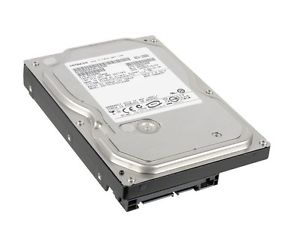

Hard disck 2: HITACHI HDT721016SLA380

http://www.hdsentinel.com/storageinfo_details.php?lang=en&model=HITACHI%20HDT721016SLA380

Ethernet Card: RTL8139C (L) http://www.realtek.com.tw/products/productsView.aspx?Langid=1&PFid=6&Level=5&Conn=4&ProdID=16

Floopy Disk:Alps DF354H - Floppy disk drive - Floppy

https://www.cnet.com/products/alps-df354h-floppy-disk-drive-floppy-series/specs/

Power Supply: Asus S-30FP 300W Main Atx Power Supply

http://www.ascendtech.us/asus-s-30fp-300w-main-atx-power-supply_i_asusps300ws30fp.aspx

CD Room:LG GDR 8164B - DVD-ROM drive - IDE Series

https://www.cnet.com/products/lg-gdr-8164b-dvd-rom-drive-ide-series/















When we extract the microproccesor we realised that it was covered with cooler cream, and we couldn´t see the model.

That are all the components of the computer:

SWICHING ON THE COMPUTER

Hello!

Today we swich on our computer for the first time. We try twice to restore operative sistem but we didnt achieve it. Finally, we swiched on the computer correctly. Now we have to consider that when we dismount and mountet again the computer we will have the same problem.

See you them !!!!!

OPENING THE COMPUTER

Hello!!


In the class of today we open the computer and we see all the parts. Also we take some photos and we clean it

CLEANING:

To clean the computer we used an air compressor that removes all dust. We use this device because if we use a thing with water the computer parts will spoil.



OUR COMPUTER DATASHEET

Hello!

This is our first work that consist in knowing the physical computer part:

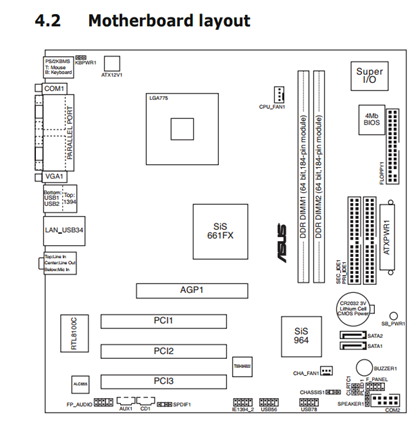

ASUS VINTAGE PE1

1-Find the datasheet of our computer:

http://dlcdnet.asus.com/pub/ASUS/Barebone/Vintage-PE1/e2012b_vintage-pe1.pdf?_ga=1.125512003.872791497.1477653291

2-What type of processor we need:

We can use a processor with a maximum frequency of 3.8GHz

3-What type of RAM memory we need:

We can use a total of  2GB RAM memory.

4-What type of Power Supply:

The power supply that we have to use must be 300W.

5-What type of storage:

We have to use Serial ATA to connect our hard disk.

6-What is the battery for:

The battery is to supply the BIOS. The fundamental purposes of the BIOS in modern PCs are to initialize and test the system hardware components, and to load a boot loader or an operating system from a mass memory device. Also, we have time and date in the BIOS.

7-What type of video card:

Onboard Video

SiS Mirage

Video Memory

Shared

8- What type of cheap sets do our motherboard has:

We have the northbridge and southbridge.

Northbridge: is connected directly to the CPU via the front-side bus (FSB) and is thus responsible for tasks that require the highest performance.

Southbridge: The southbridge typically implements the slower capabilities of the motherboard in a northbridge/southbridge chipset computer architecture.

9- Connection for the peripherals that the motherboard brings:

• Mouse
• Keyboard
• Printer
• Screen
• USB
• Internet conexión
• IEEE
• Microphone
• Audio input
• Audio output
